The MWX300, MWX400 and MWX600 provide the ultimate flexible parts washing and degreasing systems


  • Ultrasonics

  • Flood

  • Spray

  • Dedicated Jetting

  • Air Purging

  • Hot Air Dry

  • Vacuum Drying

PRECISION PARTS WASHING SOLUTIONS PROVEN IN INDUSTRIAL APPLICATIONS AROUND THE WORLD

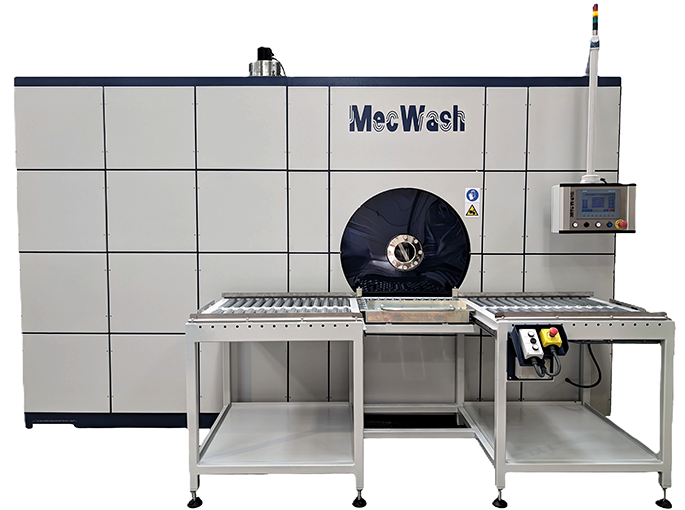

MWX300, MWX400, & MWX600 PARTS WASHERS

The systems can combine ultrasonics with high flow washing, rinsing, dedicated jetting and vacuum drying to provide the highest quality of component cleaning and drying available. The systems are designed to process complex and intricate machined or pressed parts that require high standards of cleanliness, surface finish and dryness. This includes the removal of all types of contamination, from soluble and mineral oils to greases, polishing compounds, lapping pastes and dye penetrants.

The MWX300 is the latest compact system and has been developed with higher power ultrasonics (up to 30 watts/litre), perfect for small, intricate precision components. This, added to its smaller footprint, makes the MWX300 the perfect aqueous cleaning system for the medical and electronics sectors where highly stringent standard are required for cleaning, surface finish and drying.

FEATURES & BENEFITS

  • Satisfies the high demands of the aerospace, fluid power, nuclear, medical and other precision industries
  • Highly durable specification, combines precision cleaning with 24/7 dependability
  • Numerous tailored options to fit the customer’s exact cleaning demands and automation requirements
  • Over 300 systems supplied to blue chip automotive and aerospace engineering businesses

TECHNICAL SPECIFICATIONS

Description MWX300 MWX400 MWX600
Overall Machine Size (w x d x h) 1400 x 1750 x 2470mm 2500 x 2300 x 2230mm 4254 x 2780 x 2500mm
Machine Unladen Weight 1800kg 2500kg 6000kg
Wash Chamber Size (w x h x l) 300 x 300 x 400mm 400 x 450 x 600mm - 2000 600 x 600 x 800mm - 2000
Maximum Load Weight 50kg 150kg 200kg
Load Height 900mm 900mm 900mm
Basket Rotation/Oscillation Speed 3-10rpm 3-10rpm 3-10rpm
Noise Level 75 dBA 75 dBA 75 dBA

Inter-stage parts washing & drying systems

  • Spray Wash
  • Mist Rinse
  • Hot Air Dry
SOLO PARTS WASHER

General purpose parts washing, rinsing & drying

  • Flood/Spray Wash
  • Spray Rinse
  • Hot Air Dry
DUO PARTS WASHER

SERVICING & SUPPORT

At MecWash, our comprehensive and lasting commitment to our customers starts with the initial commissioning which includes extensive training to operator and maintenance team as well as machine set up and trials - we always seek to deliverer excellence to our customers.

  • Continual Support
  • International Cover
  • Maintenance
  • Breakdown
  • Installation
  • Testing
  • Commissioning
  • Upgrades
  • Process Preview
  • Calibration
  • Technical Support
  • Refurbishment
  • Service Exchange
  • Chemicals
  • Training
